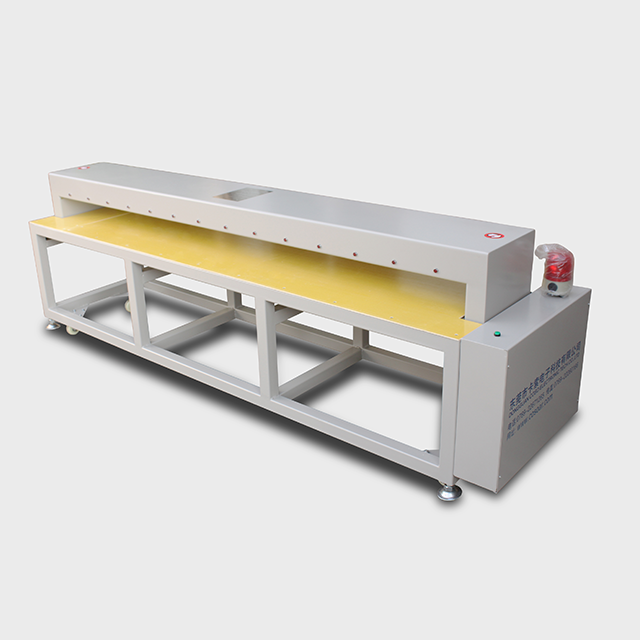

Non Power Needle Detector for Fabric

Application

It is used to detect magnetic metal foreign body in bedding, sheet metal processing, non-woven fabrics, collodion, detection and other large or wide needle cotton goods.

Product features

1.With imported integrated circuit, it has stable performance, strong anti-interference ability, anti vibration and can be used with the assembly line and not affected by other pipeline equipment;

2.Sensitivity can be adjusted freely;

3.Sound and alarm lamp automatically alarm, or output signal to the central control of the assembly line; 4.It can be customized for different widths according to the factory production line requirements.

Specification parameters:

Tunnel height: 100mm~300mm (Can be customized according to requirements)

Tunnel width: 600~2000mm (Can be customized according to requirements)

Sensitivity: Fe.0.8 mm above

Power supply: 220V 50Hz

Power: 100W

Alarm mode: Sound and alarm lights.

Alarm output signal: Relay contact signal AC220V ，1mA

Exterior dimension (Length * width * height mm):    2000×300×250mm

Weight: 200kg
